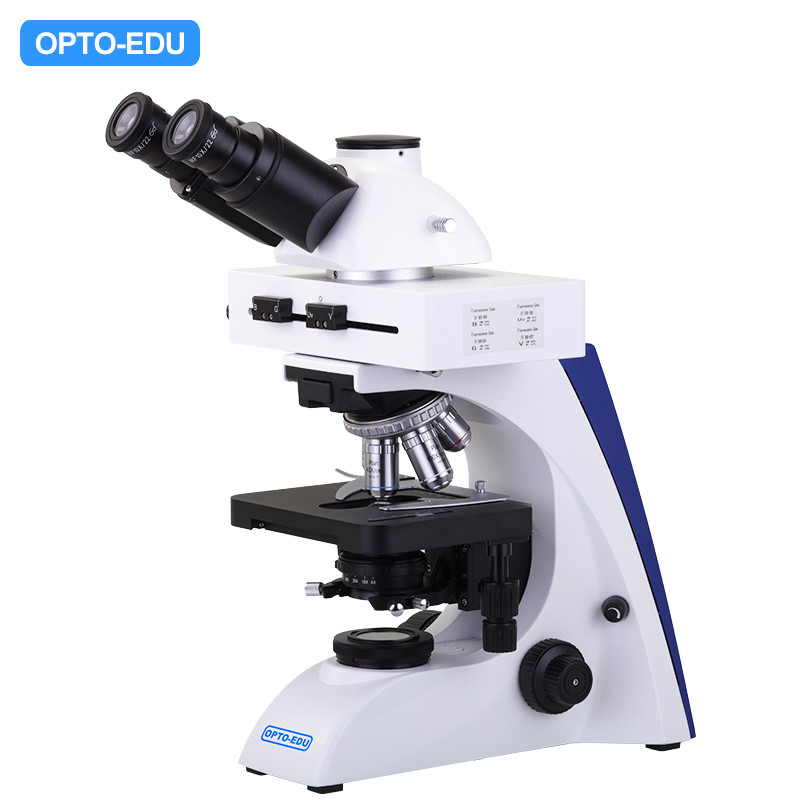

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope

OPTO-EDU A16.2603-UL LED Mikroskop Lampu Fluoresen 6V 30W Halogen Ultra LED Mikroskop Fluoresen

application

Research|Learning
Sertifikasi

CE|Rohs
Drawtube

Trinocular
Illumination

Transmit Light 6V30W Halogen
magnification

40x - 1000x
Theory

Fluorescence Microscope
Place of Origin

China
Nama merek

CNOEC, OPTO-EDU
Sertifikasi

CE, Rohs
Model Number

A16.2603-UL
Dokumen

Brosur Produk PDF
Minimum Order Quantity

1 pc
Harga

negotiable
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A16.2603-UL LED Mikroskop Lampu Fluoresen 6V 30W Halogen Ultra LED Mikroskop Fluoresen

button button

Dapatkan Harga Hubungi sekarang

Dapat ditingkatkan menjadi Objektif Fluoresen Semi-APO & Objektif Air 100x
Sumber Cahaya Fluoresen LED 5W Untuk Pengamatan Dalam Patologi, Penggunaan Laboratorium Klinis
Tabung Kacamata Kepala Besar Dia.30mm + Super Wide Field SWF10x/22mm Kacamata
Rackless Mechanical Stag Besar 182x140mm/77x52m Dengan Double Slide Holder
Swing Out Condenser N.A. 0.9/0.13 + Kecerahan Tinggi 6V30W Halogen Koehler Pencahayaan

Posisi	A16.2603-UL Spesifikasi Mikroskop Fluoresen LED		Cata, tidak.
Kepala	Kursi kepala teropong miring 30°, bisa diputar 360°, jarak antar pupil 48-76mm, Diagram tabung kacamata.30mm	●	A53.2623-B
Kepala	Duduk di atas kepala trinocular miring 30°, bisa diputar 360°, jarak antar pupil 48-76mm, Light Split Switch E100:P0/E20:P80, Diagram tabung kacamata.30mm	○	A53.2623-T
Mata	WF10x/22mm,Dia.30mm,Titik Mata Tinggi, Diopter Disesuaikan	●●	A51.2621-1022
Sikat hidung	Lima kali lipat	●	A54.2610-N01
Tujuan dari Infinity Plan	PLAN 2.5X/0.07W.D. = 8,47mm	○	A52.2606-2 (dalam bahasa Inggris).5
	Rencana 4X/0.10W.D. = 12,10mm	●	A52.2606-4
	Rencana 10X/0.25W.D. = 4,64mm	●	A52.2606-10
	PLAN 20X/0.40 ((S), W.D. = 2.41mm	●	A52.2606-20
	PLAN 40X/0.66 ((S), W.D. = 0.65mm	●	A52.2606-40
	PLAN 60X/0.80 ((S), W.D. = 0.33mm	○	A52.2606-60
	PLAN 100X/1.25 ((S,Minyak),W.D.=0.12mm	●	A52.2606-100
	PLAN 100X/1.15 ((S, Air), W.D. = 0.19mm	○	A52.2606-100W
Rencana Infinity Semi-APOLensa Fluoresen	UplanFLN 4x, N.A.0.16,W.D.=17.151mm	○	A5F.2611-4
	UplanFLN 10x, N.A.0.30,W.D. = 7,68mm	○	A5F.2611-10
	UplanFLN 20x, N.A.0.50,W.D. = 1.96mm	○	A5F.2611-20
	UplanFLN 40x, N.A.0.75,W.D. = 0,78mm	○	A5F.2611-40
	UplanFLN 100x ((Oil), N.A.1.30,W.D. = 0,15 mm	○	A5F.2611-100
Tahap Kerja	Tanpa rak(Integrated) Mechanical Stage, Ukuran 182×140mm, Jangkauan Perjalanan 77×52mm, Double Slide Holder	●	A54.2601-S10
Fokus	Koaksial Fokus kasar dan halus, Jarak perjalanan fokus kasar: 22mm, Fokus halus Div. 0.002mm	●
Kondensator	Swing-out Condenser, N.A.0.9/0.13Iris Diafragma	●	A56.2614-07a
Pencahayaan	Transmit Light 6V30W Halogen Pencahayaan Koehler, Tegangan Besar 100V ~ 240V, Lapangan Diafragma	●	A56.2650-6V30WH
Pencahayaan	Mengirim 3W LED Koehler Illumination, Lapangan Diafragma Dibekali dengan pengisi daya tegangan rendah keamanan, Input Wide Voltage 100V240V, Output 5V1A, Dukungan Power Bank Supply untuk penggunaan di luar ruangan	○	A56.2650- 3WLED
Diafragma Lapangan	Untuk Cahaya Kohler	●	A56.2615-BK
Filter	Dia.45mm, Biru	●	A56.2616-45B
	Dia.45mm, Hijau	○	A56.2616-45G
	Dia.45mm, Kuning	○	A56.2616-45A
Bidang gelap	Dark Field Condenser, Dry, N.A.0.83-0.91Untuk tujuan 4x10x40x	○	A5D.2610-BK
Bidang gelap	Dark Field Condenser, Immersion, N.A.1.3, Untuk tujuan 100x		A5D.2610-BKW
Polarisasi	Analis + Polarizer Set	○	A5P.2601-BK
Kontras Fase	Objektif Kontras Fase Infinity Plan 10x + Slide Kontras Fase 10x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau	○	A5C.2602-10
	Objektif Kontras Fase Infinity Plan 20x + Slide Kontras Fase 20x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau	○	A5C.2602-20
	Objektif Kontras Fase Infinity Plan 40x + Slide Kontras Fase 40x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau	○	A5C.2602-40
	Objektif Kontras Fase Infinity Plan 100x + Slide Kontras Fase 100x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau	○	A5C.2602-100
	Penyambungan kontras fase menara Objektif Kontras Fase Infinity Plan 10x20x40x100x, Turret Phase Contrast Condenser 5-Lubang, Teleskop 11x, Filter Hijau	○	A5C.2603-BK
Fluoresensi	Baru Desain 2025! Ultra LED Inverted Fluorescent Microscope Dengan Filter All-in-One + Sistem LED 5W Sumber Cahaya Fluoresen LED dan Filter Fluoresen Dipastikan sebagai Satu Unit Dan Bergerak Bersama, Berganti Mudah Dan Memberikan Sumber Cahaya Fluoresen Ultra-High Brightness. A16.2603-UL2B,G Cina Filter Fluoresen A16.2603-UL3B,G,UV China Filter Fluoresen A16.2603-UL4B,G,U,UV China Filter Fluoresen	●	A5F.2610-2 A5F.2610-3 A5F.2610-4
Adaptor	C-mount 0.5x, fokus disesuaikan	○	A55.2601-05
	C-mount 0,75x, fokus disesuaikan	○	A55.2601-75
	C-mount 1.0x, fokus disesuaikan	○	A55.2601-10
	Adaptor Kamera Digital Eyepiece, Dia. 23.2mm/25mm	○	A55.2610
Paket	Mikroskop 552736cm, 11kg, Unit Fluoresen 524724cm, 5kg
Catatan: "●"Di meja adalah pakaian standar, "○" Apakah Aksesoris Opsional
