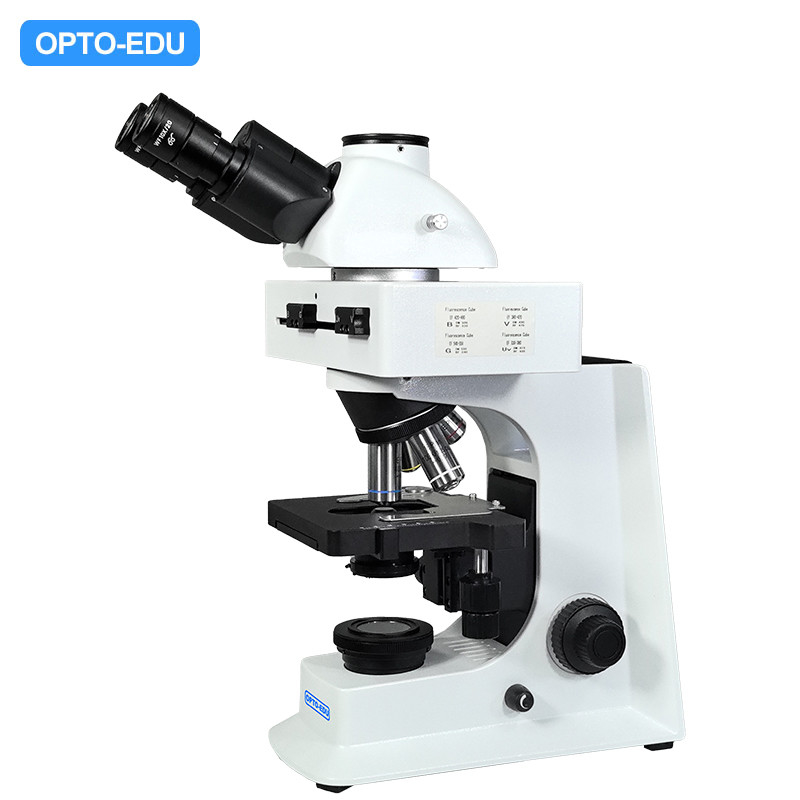

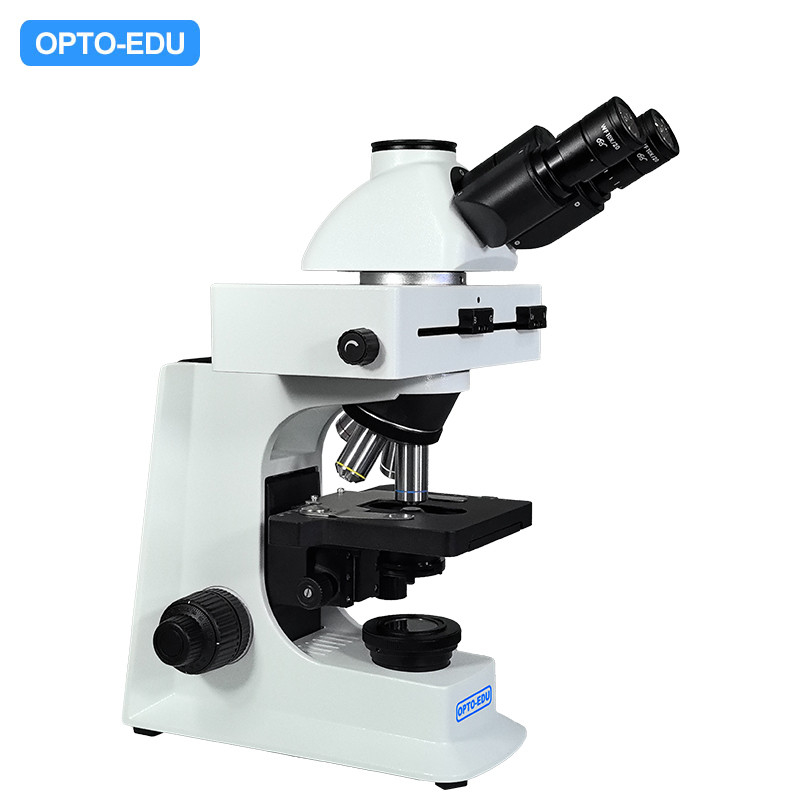

OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED

Produk - Mikroskop Fluoresensi
  • application
    Research|Learning
  • Sertifikasi
    CE|Rohs
  • Drawtube
    Trinocular
  • Illumination
    3W-LED Illumination Systems
  • magnification
    40x - 1000x
  • Theory
    Fluorescence Microscope
  • Place of Origin
    China
  • Nama merek
    CNOEC, OPTO-EDU
  • Sertifikasi
    CE, Rohs
  • Model Number
    A16.2601-UL
  • Dokumen
    Brosur Produk PDF
  • Minimum Order Quantity
    1 pc
  • Harga
    negotiable
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED

  • OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
  • OPTO-EDU A16.2601-UL Fluorescence Microscopy 3W LED Illumination Systems Ultra LED Fluorescent Microscope
Dapatkan Harga Hubungi sekarang
  • Ultra LED Cahaya Tinggi Mikroskop Pencahayaan Refleksi Fluoresen
  • Semi-APO Infinity Plan Lensa Fluoresen Tersedia Untuk Gambar Berkualitas Tinggi
  • Kreatif 100x Air Tujuan Daripada I00x Minyak Tujuan Untuk Mudah Digunakan Tanpa Minyak
  • Struktur Badan Kekuatan Tinggi Desain Pasokan Tinggi Stabil Dan Mudah Mengendalikan
  • Beragam Warna Tersedia untuk Sesuaikan Model Anda!
OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED 0

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED 1

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED 2

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED 3

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED 4

OPTO-EDU A16.2601-UL Mikroskopi Fluoresensi 3W Sistem Pencahayaan LED Mikroskop Fluoresen Ultra LED 5
Posisi A16.2601-UL Spesifikasi Mikroskop Fluoresen LED 　 Cata, tidak.
Kepala Kursi Kepala Trinocular miring 30°, bisa diputar 360°, jarak antar pupil 48-75mm, Light Split Fixed P20:E80 ● A53.2621-T
Mata WF10X/20mm (Titik Mata Tinggi) ●● A51.2602-1020
Sikat hidung Empat Kali, Kebelakang ● A54.2610-N734
Lima Kali lipat, Kebelakang ○ A54.2610-N735
Tak terbatas
Tujuan Rencana		 Rencana 4x/0.10W.D. = 12,1 mm ● A52.2606-4
Rencana 10x/0.25W.D. = 4,64mm ● A52.2606-10
PLAN 40x/0.65 ((S), W.D. = 0.65mm ● A52.2606-40
PLAN 100x/1.25 ((S, Minyak), W.D. = 0.12mm ● A52.2606-100
Rencana Infinity
Semi-APOLensa Fluoresen		 UplanFLN 4x, N.A.0.16,W.D.=17.151mm ○ A5F.2611-4
UplanFLN 10x, N.A.0.30,W.D. = 7,68mm ○ A5F.2611-10
UplanFLN 20x, N.A.0.50,W.D. = 1.96mm ○ A5F.2611-20
UplanFLN 40x, N.A.0.75,W.D. = 0,78mm ○ A5F.2611-40
UplanFLN 100x ((Oil), N.A.1.30,W.D. = 0,15 mm ○ A5F.2611-100
Tahap Kerja Ukuran panggung mekanik: 145 mm × 140 mm, Perjalanan: 76 mm × 52 mm, Skala: 0,1 mm, Double Slide Holder ● A54.2601-S04
Rackless (Integrated) Stage, ukuran 140 × 135mm,
Jangkauan perjalanan 75×35mm, Double Slide Holder		 ○ A54.2601-S12
Fokus Koaksial Fokus kasar dan halus, Jarak perjalanan fokus kasar: 26mm, Jarak perjalanan fokus halus: 2μm / divisi ● 　
Kondensator Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down ● A56.2614-C06b
Pencahayaan Sistem pencahayaan LED 3W
Dibekali dengan pengisi daya tegangan rendah keamanan, Input Wide Voltage 100V-240V, Output 5V1A, Dukungan Power Bank Supply untuk penggunaan di luar ruangan		 ● A56.2650-3B
Lampu Halogen 12V/20W ○ A56.2650-12V20WH
Lampu Halogen 6V/30W ○ A56.2650-6V30WH
Diafragma Lapangan Upgrade ke Cahaya Kohler ○ A56.2615-S
Filter Dia.45mm, Biru ○ A56.2616-45B
Dia.45mm, Hijau ○ A56.2616-45G
Dia.45mm, Kuning ○ A56.2616-45A
Bidang gelap Dark Field Condenser, Dry, N.A.0.83-0.91Untuk tujuan 4x10x40x ○ A5D.2610-S
Polarisasi Analis + Polarizer Set ○ A5P.2601-S
Kontras Fase Objektif Kontras Fase Infinity Plan 10x + Slide Kontras Fase 10x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau ○ A5C.2601-10
Objektif Kontras Fase Infinity Plan 20x + Slide Kontras Fase 20x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau ○ A5C.2601-20
Objektif Kontras Fase Infinity Plan 40x + Slide Kontras Fase 40x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau ○ A5C.2601-40
Objektif Kontras Fase Infinity Plan 100x + Slide Kontras Fase 100x + Kondensor Kontras Fase + Teleskop 11x + Filter Hijau ○ A5C.2601-100
Penyambungan kontras fase menara
Objektif Kontras Fase Infinity Plan 10x20x40x100x, Turret Phase Contrast Condenser 5-Lubang, Teleskop 11x, Filter Hijau		 ○ A5C.2603-S
Fluoresensi Baru Desain 2025!
Ultra LED Inverted Fluorescent Microscope Dengan
Filter All-in-One + Sistem LED 5W
Sumber Cahaya Fluoresen LED dan Filter Fluoresen Dipastikan sebagai Satu Unit Dan Bergerak Bersama, Berganti Mudah Dan Memberikan Sumber Cahaya Fluoresen Ultra-High Brightness.

A16.2601-UL2B,G Cina Filter Fluoresen
A16.2601-UL3B,G,UV China Filter Fluoresen
A16.2601-UL4B,G,U,UV China Filter Fluoresen		 ● A5F.2610-2
A5F.2610-3
A5F.2610-4
Adaptor C-mount 0.5x, fokus disesuaikan ○ A55.2601-05
C-mount 0,75x, fokus disesuaikan ○ A55.2601-75
C-mount1.0x, fokus disesuaikan ○ A55.2601-10
Cermin Cermin & Pemegang ○ A56.2601
Perlengkapan Perangkat Winding Wire ○ A50.2602-S
Paket Mikroskop 55*38*29cm, 7,8kg, Unit Fluoresen 52*47*24cm, 5,0kg
Catatan: "●"Di meja adalah pakaian standar, "○" Apakah Aksesoris Opsional
