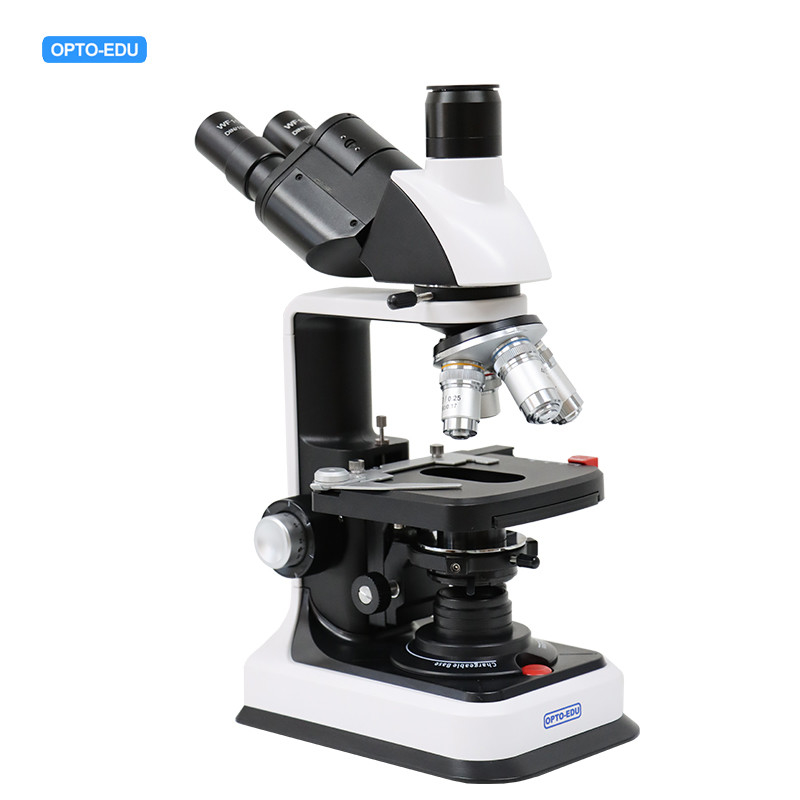

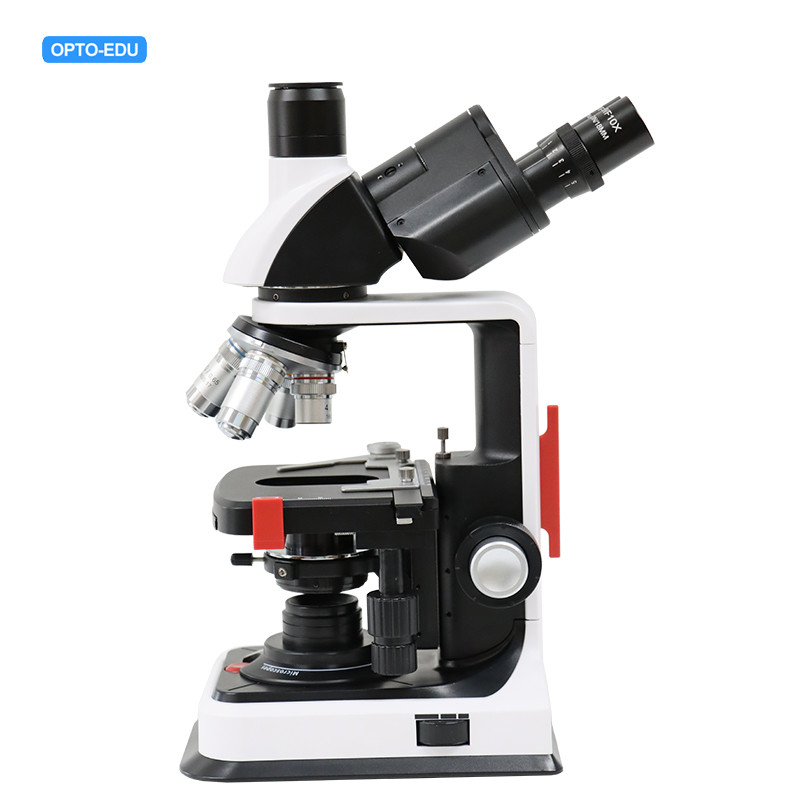

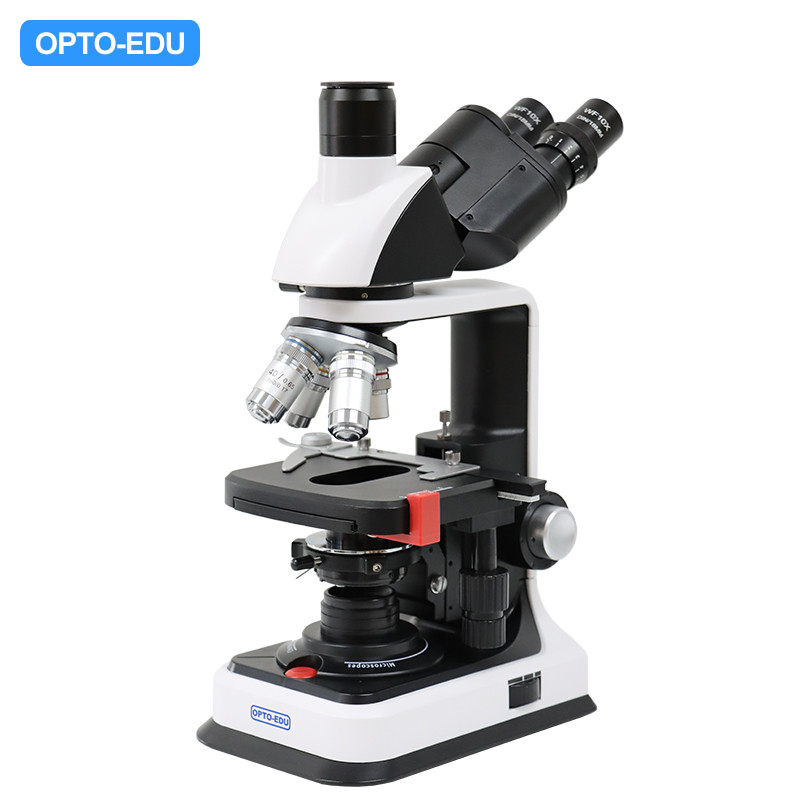

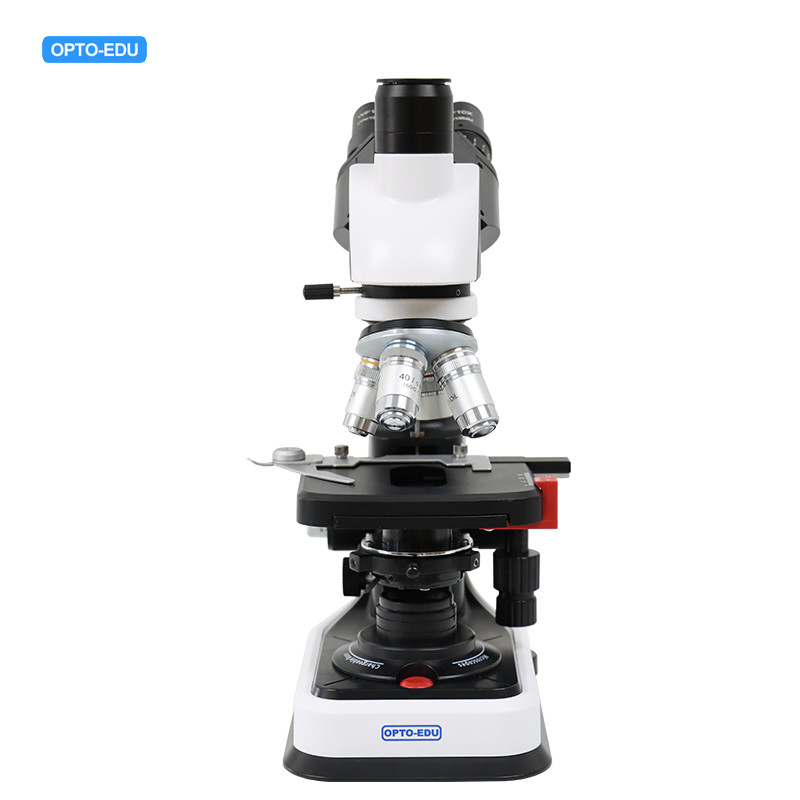

OPTO-EDU A11.3620 Trinocular Biological Microscope

OPTO-EDU A11.3620 Mikroskop Biologis Trinocular

Produk - Mikroskop Biologis

Head

Trinocular, 45° Tilt, Adjustable Pupillary Distance 52mm-76mm
Eyepiece

WF10x/18mm
Objective

195mm Achromatic Objective Lens 4x,10x,40x,100x(O,S)
Nosepiece

Quadruple
Condenser

Abbe Condenser N.A.1.25 Equipped Iris Diaphragm And Filter Holder
Working Stage

Double Layers Mechanical Working Stage 115x125mm
Place of Origin

China
Nama merek

CNOEC, OPTO-EDU
Sertifikasi

CE, Rohs
Model Number

A11.3620
Dokumen

Brosur Produk PDF
Kuantitas min Order

1 PC
Harga

negotiable
Packaging Details

Carton Packing, For Export Transportation
Waktu pengiriman

5 ~ 20 Hari
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A11.3620 Mikroskop Biologis Trinocular

button button

Dapatkan Harga Hubungi sekarang

Kepala Trinocular Dengan 1.0x Eyepiece Tube Dia.23.2mm Untuk Kamera Digtal
WF10x/18mm Eyepiece. Quadruple Nosepiece, 195mm Achromatic Lens 4x10x40x100x
Abbe Condenser N.A.1.25 Dilengkapi Iris Diaphragm dan Filter Holder
Double Lapisan Mechanical Working Stage 115x125mm Bergerak 80*30mm
1W LED Kecerahan disesuaikan, Baterai isi ulang, Dual Color opsional

A11.3620 Spesifikasi Mikroskop Biologi
Kepala	Trinocular, 45° tilt, Jarak pupil yang dapat disesuaikan 52mm-76mm
Mata	WF10x/18mm
Tujuan	195mm Akromatik Objektif 4x,10x,40x,100x ((O,S)
Sikat hidung	Empat kali lipat
Kondensator	Abbe Condenser N.A.1.25 Dilengkapi Iris Diaphragm dan Filter Holder
Tahap Kerja	Lapisan ganda Mechanical Stage 115x125mm, Bergerak Range 80x30mm
Sistem Fokus	Koaksial Fokus kasar & halus, akurasi fokus halus 0.02mm
Pencahayaan	1W LED Kecerahan disesuaikan, warna ganda opsional
Sumber Daya	Input AC100-240V, Output DC5V1A, 1.2V AA Ni-MH 1800mAh Baterai isi ulang x3
C-mount	Digital Eyepiece Tube Dia.23.2mm, 1x
Opsional	1Kepala: Monocular/Binocular 2. Mata: WF20x 3Tujuan: Rencana Akromatik Tujuan 4.Fokus Sistem: Gearbox (Fokus Akurasi 0,002mm) 5. LED berwarna ganda, Putih + Kuning (Panjang gelombang: 450~455μm) 6.Filter: Biru, Kuning, Putih
