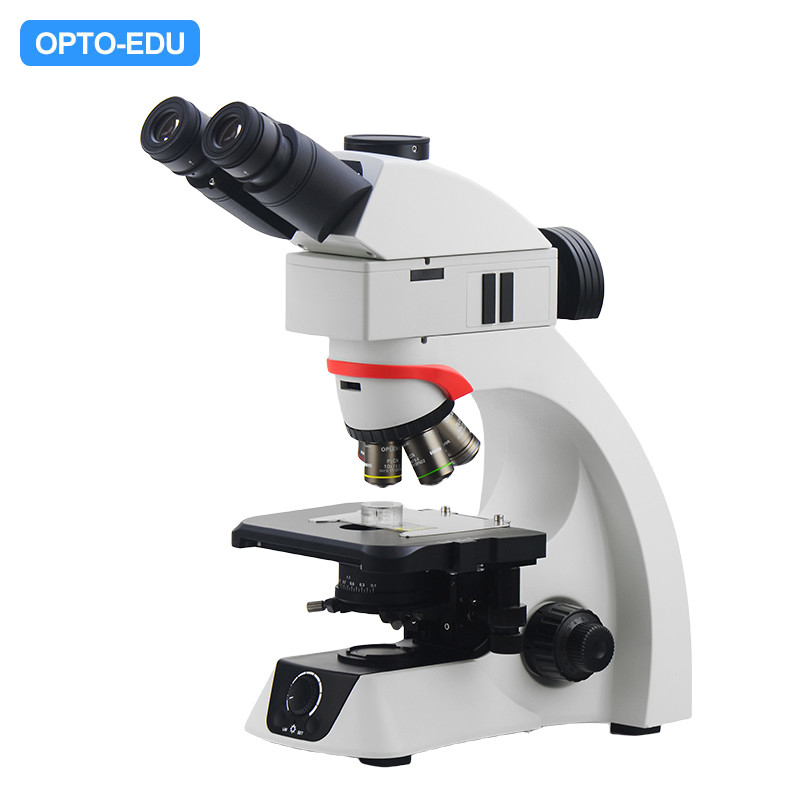

OPTO EDU A13.2263 Trinocular Laboratory Transmit Reflect Metallurgical Microscope

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical

Produk - Mikroskop Optik Metalurgi
  • Menyoroti

    Mikroskop Metallurgi Laboratorium

    ,

    Mikroskop Metallurgy Reflektif

    ,

    Trinocular Laboratory Metallurgical Microscope

  • Sistem Optik
    ECGO Infinity Plan Sistem Optik Achromatic Reksa, Confocal 45mm
  • Kepala & Adaptor
    Kepala Bidang Lebar Trinokular, Pemisahan Cahaya: (50/50), FN = 22mm
  • Lensa mata
    Bidang Ultra Lebar 10x/23mm, Diopter Dapat Disesuaikan -2~+8°, Dengan Eyecup
  • Objektif
    Tujuan Achromatic PLCN Infinity Plan, Kaca Penutup 0,17
  • Kondensator
    Kondensor Abbe, NA=1,1, 4x~100x
  • Mengirimkan Penerangan
    Rumah Lampu LED SUPERMLED 10W, Waktu Hidup 60000 Jam
  • Tempat asal
    Cina
  • Nama merek
    OPTO-EDU
  • Sertifikasi
    CE, Rohs
  • Nomor model
    A13.2263
  • Dokumen
    Brosur Produk PDF
  • Kuantitas min Order
    1 PC
  • Harga
    FOB $1~1000, Depend on Order Quantity
  • Kemasan rincian
    Kemasan Karton, Untuk Transportasi Ekspor
  • Waktu pengiriman
    5 ~ 20 Hari
  • Syarat-syarat pembayaran
    T/T, Serikat Barat, Paypal
  • Menyediakan kemampuan
    5000 buah/Bulan

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical

  • OPTO EDU A13.2263 Trinocular Laboratory Transmit Reflect Metallurgical Microscope
Dapatkan Harga Hubungi sekarang
  • Trinocular, kepala miring 30° Light Switch Split: E50/P50, WF/10XFN22 Eyepiece
  • Ultra Wide Infinity Plan Objektif Archromatic, 4X, 10X, 20X, 40X, 100X
  • 5 lubang yang dikodekan Nosepiece Support LIM System: ECO & Brightness Memories
  • Transmit Light 10W LED Wide Color Band, Reflek LED Metallurgical Illuminator
  • Opsional C-Mount + Kamera Digital, Skala Dukungan Perangkat Lunak & Parameter Auto-Switching
OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 0

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 1
OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 2
OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 3

▶Trinocular Kepala

Tritinocular Ultra Wide Field, FN=23

Pembagian cahaya: (E50/P50)


▶Mata yang Bisa Disesuaikan dengan Diopter

10X/FN=23mm,Dengan Eyecup,-2~+8°
OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 4

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 5

▶Sikat hidung

5 lubang yang dikodekan ke dalam bagian hidung



▶Tahap Kerja

Jarak bergerak: 76 mm × 55 mm,Plat Lapisan Keramik Nano Anti-Wear,Tangan kanan XY Pindah Tombol,Dengan cincin penyesuaian peredam


▶Objektif Akromatik Infinity

Infinity Plan Akromatik Objektif: 4x,10x,20x,40x,100x
OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 6




▶Sistem pencahayaan

Lumi Cite Ultra-High Brightness, SUPERMLED High-Power And Wide Color Gamut LED Light,60,000 Jam,4500K suhu warna, sinar matahari disimulasikan

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 7

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 8
Artikel A12.2263 Spesifikasi Mikroskop Laboratorium A12.2263
Biologi		 A16.2263
Fluoresen		 A13.2263
Metalurgi		 Nomor model.
Sistem optik ECGO Infinity Plan Mutual Achromatic Optical System, Confocal 45mm BF,DF,PH,POL BF, FL BF,POL 　
Badan Utama

Sikat hidung
Tahap Kerja
Fokus
Pindahkan cahaya.		 C63F Badan utama:
--5 lubangKodeBagian dalam hidung
--Tingkat Lapisan Ganda, Jangkauan Gerak 76×55mm, Nano Anti-Wear Keramik Lapisan Plat, Tangan Kanan XY Gerak Tombol, Dengan Damping Adjustment Ring
--Fokus kasar & halus koaksial, dengan Safety Stop Lock Ring & Tension Adjustable Ring, Jarak fokus 25mm, Stroke kasar17.6mm, Stroke halus 0.1m, Skala halus 1μm
--Dibangun dalam Transmit Cahaya Kohler, Sistem Manajemen Intensitas Cahaya (LIM), Fungsi Memori Kecerahan, Fungsi Auto-Off ECO		 ● ● ● A54.2201-C63F
Kepala & Adaptor Trinocular Wide Field Head, Light Split: (50/50), FN = 22mm ● ● ● A53.2201-CT63
1.0x C-Mount + Focus Adapter Ring, untuk Sensor 2/3 ∼ 4/3 ○ ○ ○ A55.2201-1xC
0.63x C-Mount, untuk Sensor 1/1.8 ~ 2/3 ○ ○ ○ A55.2201-63xC
0.5x C-mount, untuk Sensor 1/2 ~ 1/1.8 ○ ○ ○ A55.2201-05xC
Mata Ultra Wide Field 10x/23mm, Diopter Adjustable -2~+8°, Dengan Eyecup ● ● ● A51.2201-1023
Tujuan PLCN Infinity Plan Objektif Akromatik, Cover Glass 0.17 　 　 　 　
4X, NA = 0.10, W.D=17mm, OFN=23 ● ● / A51.2202-4
10X, NA = 0.25, W.D=10mm, OFN=23 ● ● / A51.2202-10
20X, N.A = 0.40, W.D=3mm, OFN=23 ● ● / A51.2202-20
40X, NA = 0.65, W.D=0,6mm, OFN=23 ● ● / A51.2202-40
60X, NA = 0.80, W.D=3mm, OFN=23 ○ ○ / A51.2202-60
100X, N.A = 1.25, W.D=0,25mm, OFN=23 ● ● / A51.2202-100
MPLN Infinity Plan Objektif Metalurgi, Tidak Ada Kaca Penutup 　 　 　 　
5x, NA = 0.16, W.D=12mm, OFN=22, M20.32 / / ● A5M.2210-5
10x, NA = 0.3, W.D=10mm, OFN=22, M20.32 / / ● A5M.2210-10
20x, NA = 0.45, W.D = 12,5mm, OFN = 22, M20.32 / / ● A5M.2210-20
50x, NA = 0.8, W.D=3mm, OFN=22, M20.32 / / ● A5M.2210-50
100x, N.A = 0.9, W.D=1mm, OFN=22, M20.32 / / ● A5M.2210-100
Kondensator Abbe Kondensor, N.A = 1.1, 4x~100x ● ● ● A56.2201-11
Akromatic Aplanatic Condenser, N.A=1.4, 10x ~ 100x ○ ○ ○ A56.2201-14
Kondensor Swing-out N.A=0.9, 1,25x~100x (1,25x~4x Saat Swing Out) ○ ○ ○ A56.2201-S
Mengirim
Pencahayaan		 SUPERMLED 10W LED Light House, Waktu Hidup 60000 Jam, Berwarna Luas Gamut 4500K Suhu Warna ● ● ● A56.2204-1
Pikirkan
Fluoresen
Pencahayaan		 Epi Fluorescent LED Illuminator, 1 Band, UV ○ A16.2263-UV / A5F.2202-UV
Epi Fluorescent LED Illuminator, 1 Band, B ○ A16.2263-B / A5F.2202-B
Epi Fluorescent LED Illuminator, 1 Band, G ○ A16.2263-G / A5F.2202-G
Epi Fluorescent LED Illuminator, 2 Band, UV+B ○ A16.2263-UVB / A5F.2202-UVB
Epi Fluorescent LED Illuminator, 2 Band, UV+G ○ A16.2263-UVG / A5F.2202-UVG
Epi Fluorescent LED Illuminator, 2 Band, B + G ○ A16.2263-BG / A5F.2202-BG
Epi Fluorescent LED Illuminator, 3 Band, UV+B+G ○ A16.2263-UVBG / A5F.2202-UVBG
Pikirkan
Metalurgi
Pencahayaan		 Epi Metallurgical LED Illuminator, White Color LED Light House, Dengan Metallurgical BF Module, Dengan Polarizing Slot / / ● A5M.2201-KM
Medan gelap Kondensor medan gelap (kering), N.A=0.92, 10x ~ 100x ○ ○ / A5D.2201-D
Kondensor medan gelap (Minyak), N.A=1.4, 10x ~ 100x ○ ○ / A5D.2201-I
Kontras Fase Universal Turret Phase Contrast Condenser, Dukungan BF, DF, PH1, PH2, PH3 ○ ○ / A5C.2201
Filter Hijau Untuk Kontras Fase Dia.45mm ○ ○ / A5C.2201-G45
UPLFLN Infinity Plan Semi-APO FL Tujuan Kontras Fase 　 　 / 　
4x, NA = 0.15, CG=0.17, W.D = 12mm, OFN = 26.5 ○ ○ / A5C.2212-4
10x, NA = 0.30, CG=0.17, W.D = 9mm, OFN = 26.5 ○ ○ / A5C.2212-10
20x, NA = 0.65, CG=0.17, W.D = 2,3mm, OFN = 26.5 ○ ○ / A5C.2212-20
40x, NA = 0.90, CG=0.17, W.D = 0,7 mm, OFN = 26.5 ○ ○ / A5C.2212-40
100x, N.A = 1.30, CG=0.17, W.D=0,3mm, OFN=26.5 ○ ○ / A5C.2212-100
Polarisasi Transmit Polarizer Filter Dia.45mm, Masukkan Transmit Light Port ○ ○ ○ A5P.2201-P45
Transmit Analyzer, Masukkan dalam slot nosetep ○ ○ ○ A5P.2201-P30
Transmit Analyzer Holder ○ ○ ○ A5P.2201-P45H
Kamera 3.0M USB 2.0 Kamera, Sony 1/2 " Warna CMOS, Bekerja Dengan 0.5x C-Mount ○ ○ ○ A59.2271-3M
6.3M USB 3.0 Kamera, Sony 1/1.8 " Warna CMOS, Bekerja Dengan 0.5x/0.63x C-Mount ○ ○ ○ A59.2271-6.3M
20M USB 3.0 Kamera, Sony 1" Warna CMOS, Bekerja Dengan 1x C-Mount ○ ○ ○ A59.2271-20M
30M, USB3.0, Aptina 1/2.2" Warna CMOS, Dengan Perangkat Lunak, Dengan 0.5x C-Mount ○ ○ ○ A59.2273-30M
8.0M USB 3.0 Kamera Fluoresen, Sony 1" Warna CMOS, Bekerja Dengan 1x C-Mount / ○ / A59.2272-8M
12.8M USB3.0 Kamera Fluoresen, Sony 1" Warna CMOS, Bekerja Dengan 1x C-Mount / ○ / A59.2272-12.8M
lainnya Minyak rendam 8ml, Rasio Refleksi = 1.518, Viskositas rendah (135CST) ● ● / A50.2201-1
Allen Kunci 4, 3 ● ● ● A50.2204-3
OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 9

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 10

OPTO EDU A13.2263 Laboratorium Trinocular Transmit Reflect Mikroskop Metallurgical 11
